Bongo Plankton Net

Market:
Scientific Research
Product type:
Plankton Net
Applications:
Horizontal Water Sampling, Vertical Water Sampling, Salt Water Sampling
Lead time:
10 to 15 Days
The main purpose of the Double Plankton Net (Bongo Style) is to perform a double sampling of a specific water stratum while reducing the turbulences linked to the use of a simple
ring

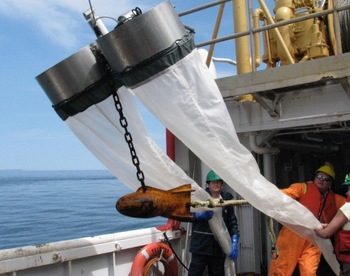

  • The Bongo net consists of two identical nets that can be towed vertically or diagonally from a given depth to the surface.
  • It has the advantage of being able to make a double sampling of the same water column, in order to either; freeze a sample for the future or to make a sampling of the same water column with two different filtration precision.
  • The net must be used with a 22Kg
    V-Fin depressor
    to create a negative pressure on the net.
  • It is composed of a cylindrical part from the opening of the net followed by a conical part to the tail.
  • The nets are each clamped to one of the two rings on the double
    aluminum
    frame
    . The frame is provided with a single towing point, to reduce the disturbances caused by the flanges.
  • A filtering
    cod-end
    is installed at the end of each nets.
  • The standard opening diameter is 60cm for each ring. Other sizes are available on request.
  • The length of each net is generally 300cm. Custom-made nets can also be manufactured.
  • Material: Precision Filtration
    Nitex
    Mesh
  • Length: 3.00 m
  • Width: 60.00 cm
  • Height: 60.00 cm
$1139.00

Request a quote

To request a quote for a made to measure product, please fill this form.

Characteristics

Average Lifespan: Average Lifespan: 1 to 5 years
Installation Complexity: Quick and easy installation that requires a minimum of two (2) people
Local Product: Product made by hand in Quebec
Warranty: Lifetime warranty covering manufacturing defaults
Maintenance: Remove, rince with fresh water and dry after each use

Manufacturing

Manufacture details: The net is made of ultra-strong and extremely precise Nitex filtration mesh. We have over 60 options of filtration mesh sizes varying from 1 to 5000 microns
The net mouth and tail are reinforced with non-treated Cordura
fabric
1000 Deniers on which
eyelets
are added (net mouth) and a clamping device (net tail) to hold onto the cod-end. Every seam is reinforced with 3/4in webbing to guarantee an ultra strong net
Ideal for capturing phytoplankton (smaller than 80 microns), zooplankton (60 to 600 microns) and other micro-organisms (500 to 5000 microns)
For nets with a diameter larger than 100cm, extra reinforced webbing is added on the lenght of the net to maximise it's structural integrity
It is possible to add a chocking band on the net which is formed by passing a rope through small
stainless steel
rings sewn within the net, thus allowing the user to close and open the net during operation
