Standard Plankton Net - 50cm mouth diameter x 250cm length

Previous product Next product

Lifetime Warranty

$1019.00

Request a quote

To request a quote for a made to measure product, please fill this form.

Market:

Aquatic Scientific Research

Product type:

Plankton Net

Applications:

Micro Organisms Sampling, Horizontal Water Sampling, Vertical Water Sampling, Salt Water Sampling, Fresh Water Sampling

Lead time:

Upon Order

The main purpose of the Standard Plankton Net is to conduct a simple sampling of a specific water stratum (only 1 filtration accuracy).

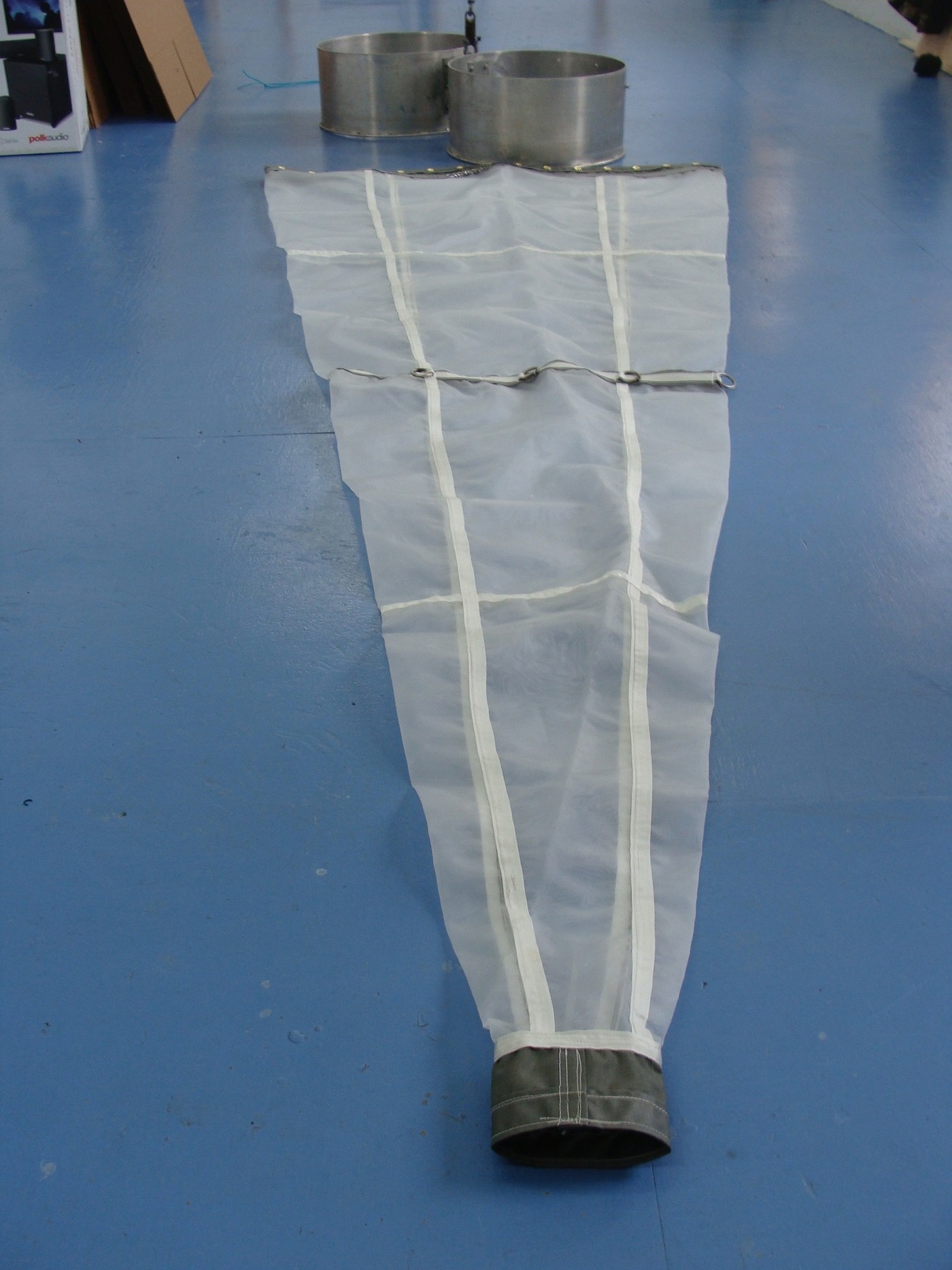

The standard plankton net is conical and is the simplest type of sampling net.

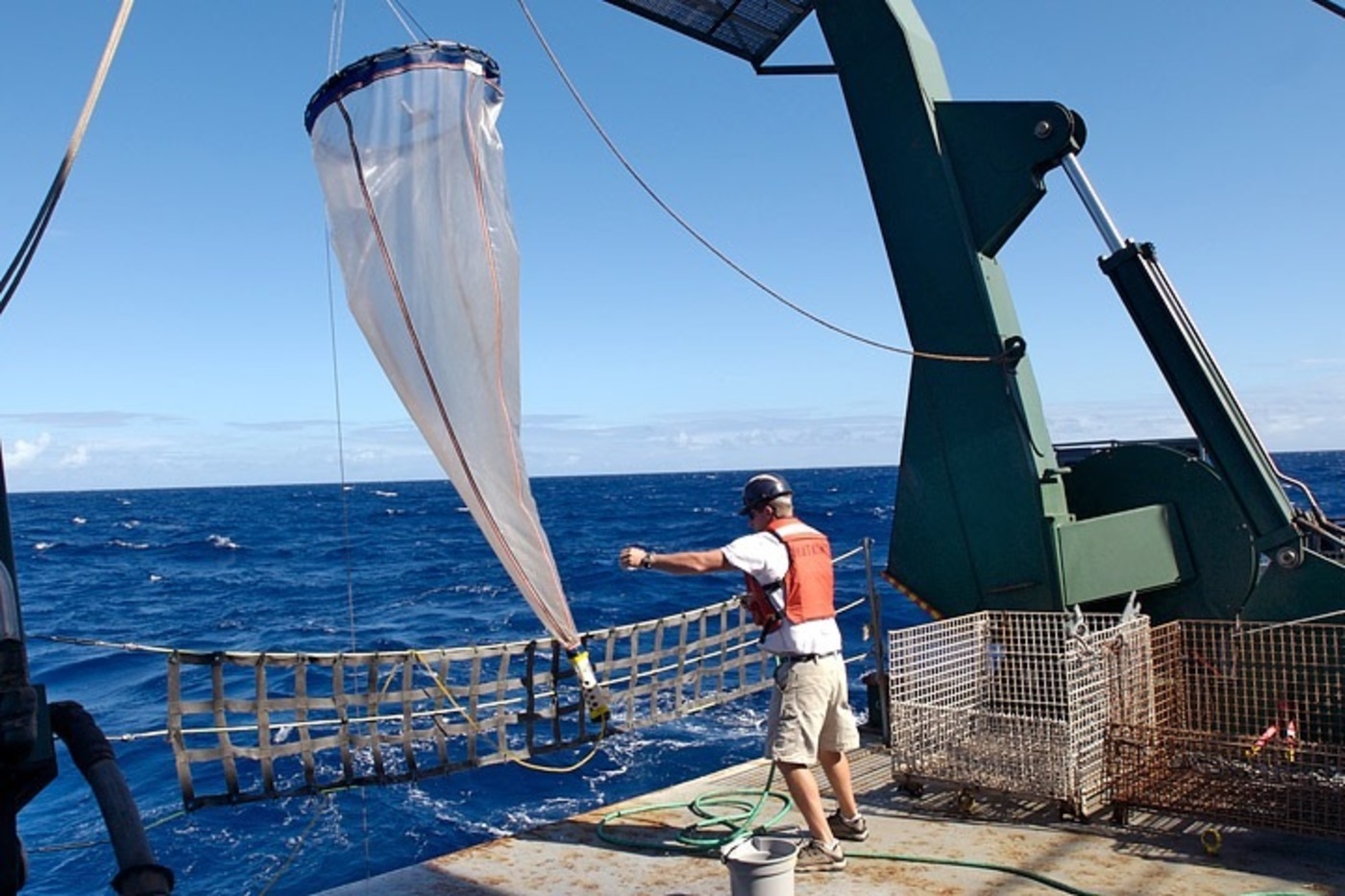

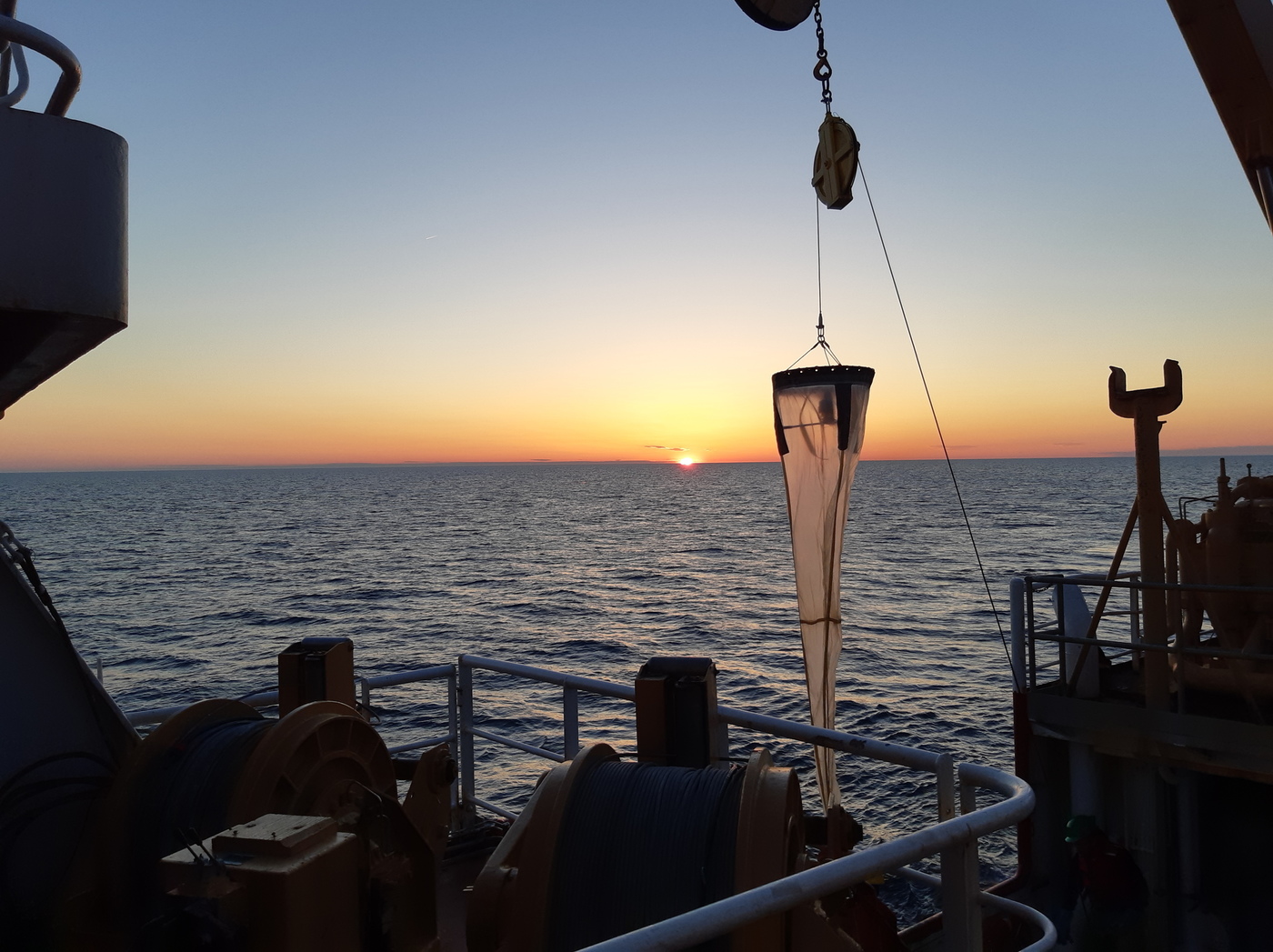

It can be used for horizontal, vertical or oblique sampling.
It is laced on a
stainless steel

ring
with a towing flange and a filtering bucket at its end.
Standard opening diameter (25cm, 50cm, 75cm, 100cm). Other sizes are available on request.
The ratio of opening diameter to the length of the net is usually 1:3 or 1:5. Customized nets with different ratios can also be manufactured.

Click here to view other plankton nets

Material: Precision Filtration
Nitex

Mesh

Accessories required for installation

	Price
Cod-End Recipient with filtration window made of Nitex mesh	$179.00
Stainless Steel Rings with bridle attachment	$99.00
Plankton Net Choke Band (Extra Feature)

Average Lifespan: Average Lifespan: 1 to 5 years

Installation Complexity: Quick and easy installation for one (1) person

Transportable Net: Light and Compact

Local Product: Product made by hand in Quebec

Warranty: Lifetime warranty covering manufacturing defaults

Manufacture details: The net is made of ultra-strong and extremely precise Nitex filtration mesh. We have over 60 options of filtration mesh sizes varying from 1 to 5000 microns.
The net mouth and tail are reinforced with non-treated Cordura

fabric

1000 Deniers on which grommets are added (net mouth) and a clamping device (net tail) to hold on to the

cod-end

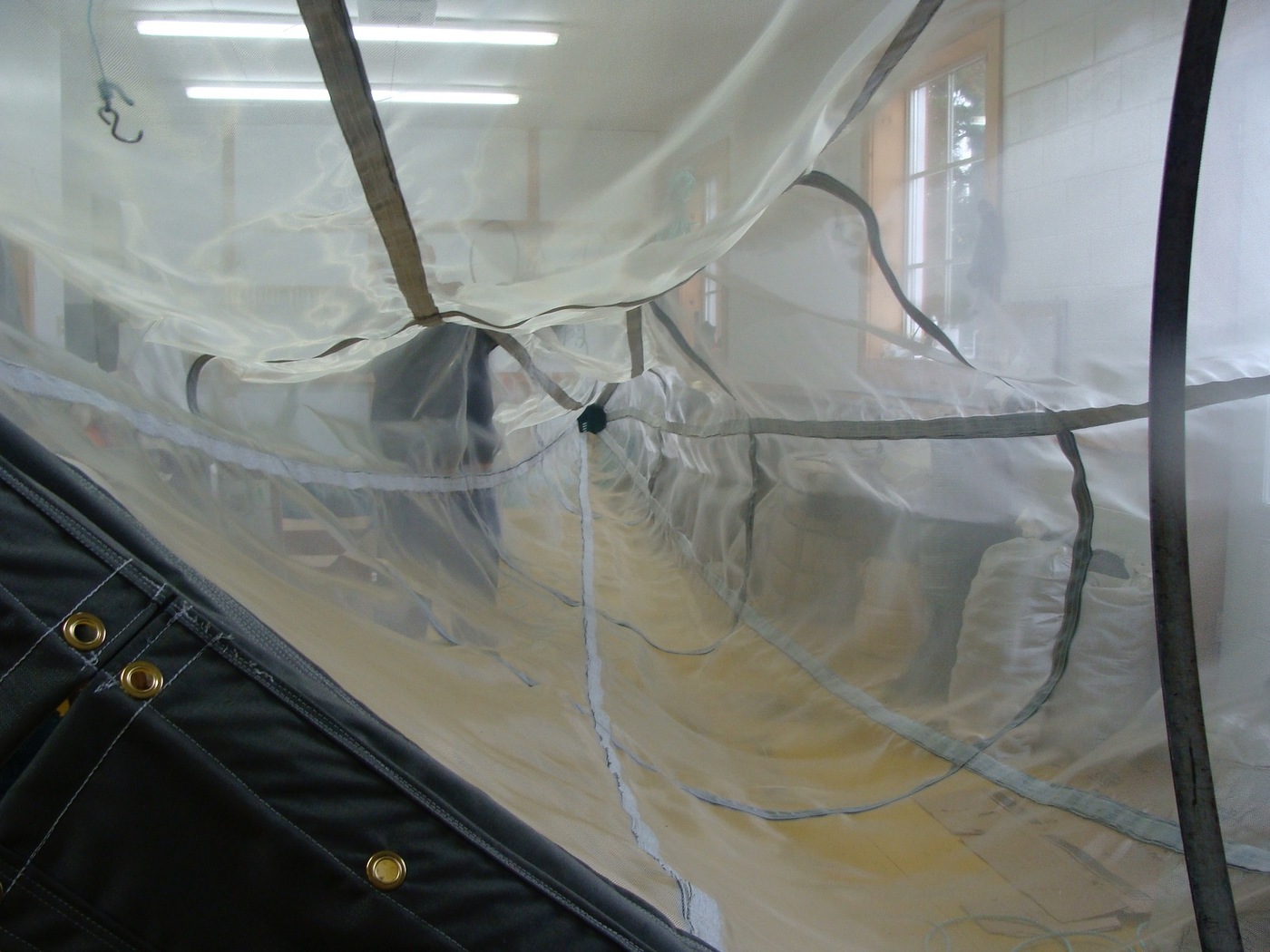

. Every seam is reinforced with 3/4in webbing to guarantee an ultra-strong net
Ideal for capturing phytoplankton (smaller than 80 microns), zooplankton (60 to 600 microns) and other micro-organisms (500 to 5000 microns)
For nets with a diameter larger than 100cm, extra reinforced webbing is added on the length of the net to maximize i's structural integrity.
